Have you ever heard of an outdoor porphyry floor with resin joints that make the floor draining, non-slip and stable over the years? In this article you can find out more and see photos of all the stages of construction.

Argomento Wiki
Porphyry floors

Porphyry and resin draining external floor

We are located in the hills of Vicenza overlooking a wonderful landscape that we wanted to respect by creating the exterior of this house with a natural material.

Studio CZ, with whom we have been working for many years, recommended us to this client couple who had specifically requested a local company to help them find a durable solution for their outdoor paving.

Together we assessed the possible alternatives that would meet their needs in terms of aesthetics, which meant it had to blend in perfectly with the surrounding green environment, but also in terms of practicality, which for them meant bearing the load of vehicles and having good rainwater drainage characteristics.

Find out which materials I recommended and the final result obtained!



Laying porphyry cubes

Porphyry met many of their needs and everyone agreed from the start, it was just a question of choosing the size, the finish and the type of sealing.

Let's start with aesthetics... if you think of any porphyry outdoor paving you've seen in squares, parks and streets, the colour grey will come to mind, and indeed it is the most common shade by which this natural stone is known. But you may not be aware that there are several natural porphyry colours, mainly three, and customers have chosen this striking, rust-coloured flamed finish.


To see all the other finishes, read this article: trentino porphyry


Even the choice of format was not random, in this case there are four types: opera incerta, squared, sawn and cubes. They opted for the largest format of the smallest type, a cube porphyry with sides between 8-10 cm, which we laid following a radius pattern.

To discover the characteristics of all formats, click here: : porphyry formats

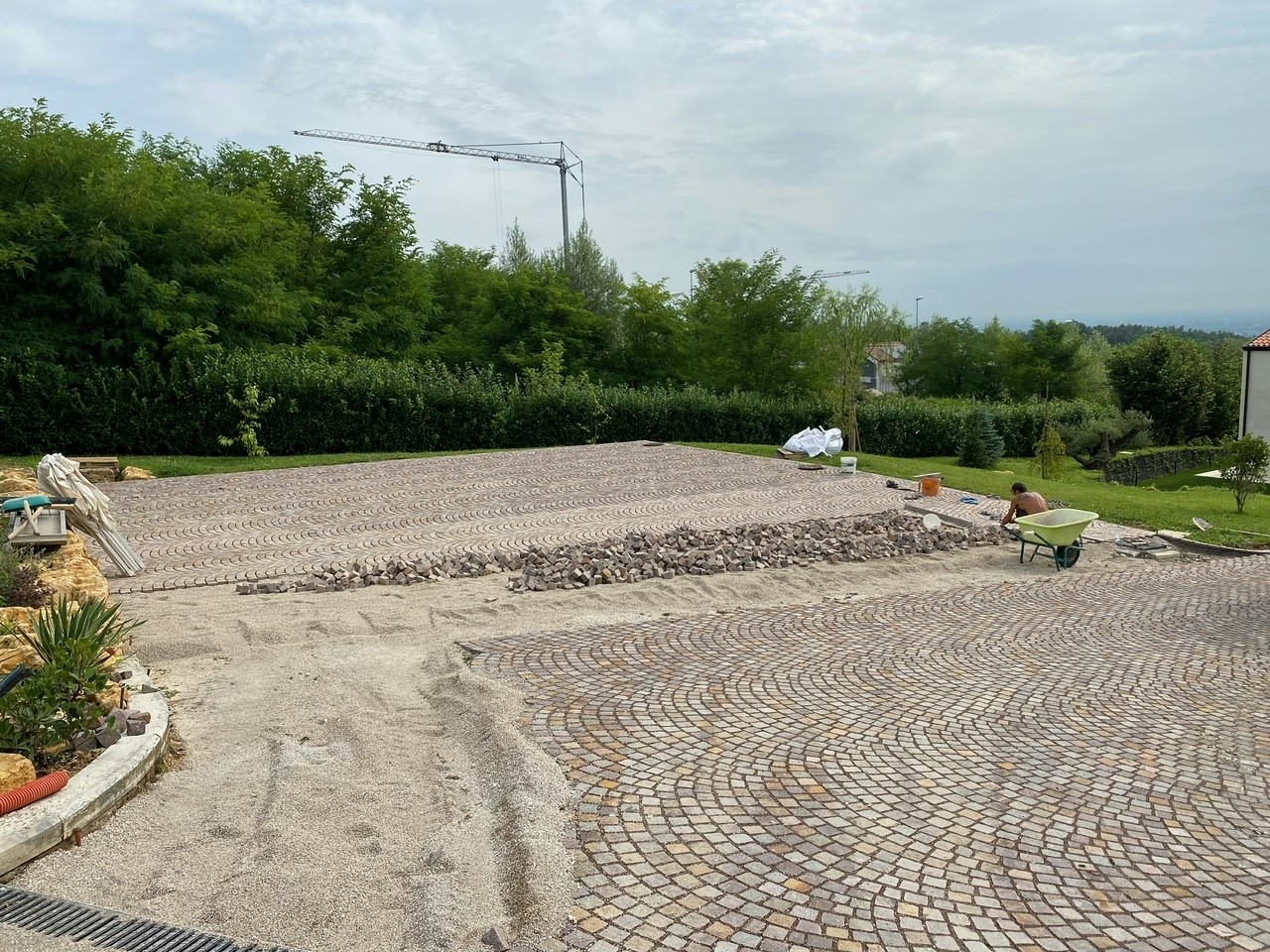

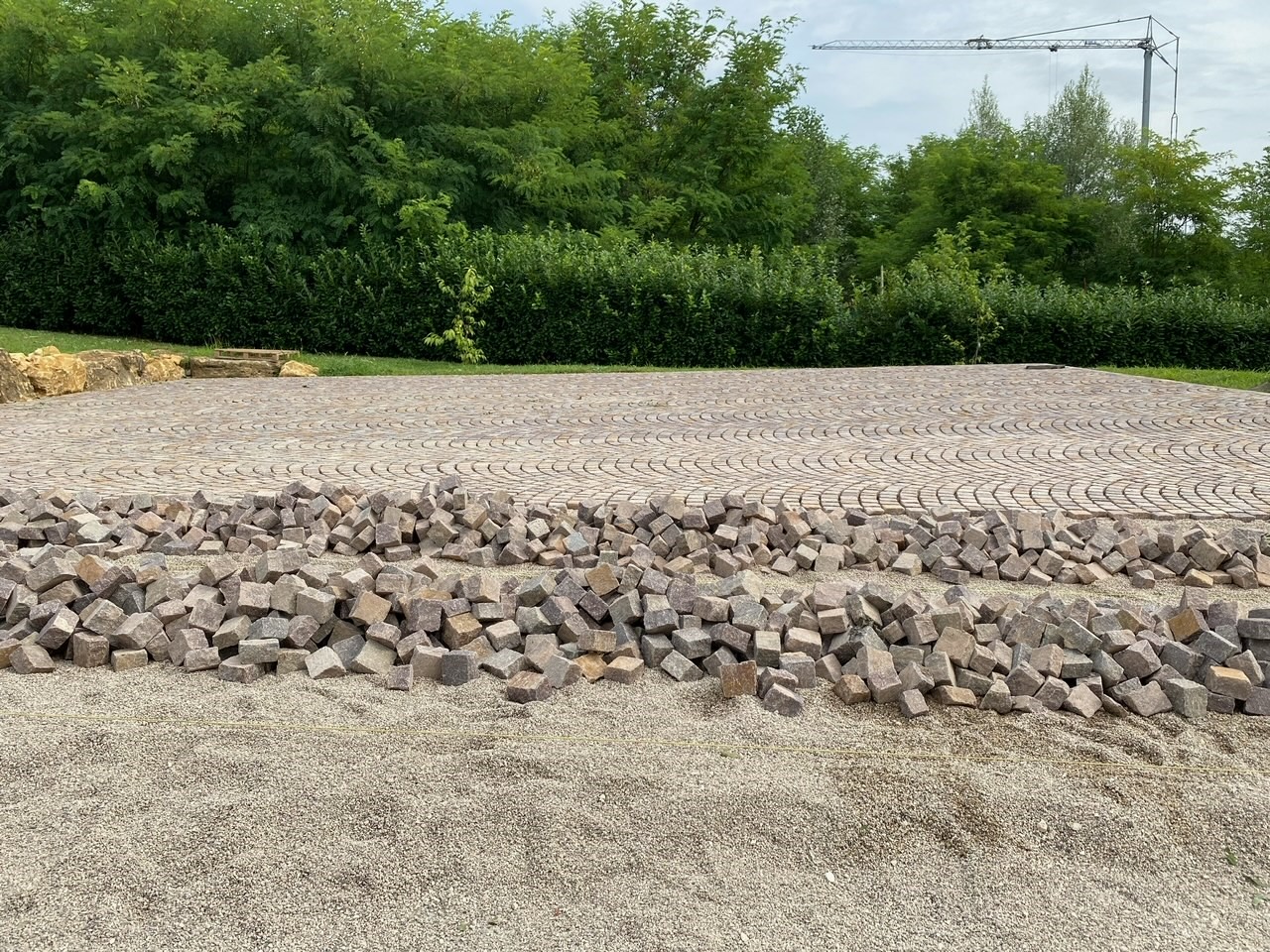

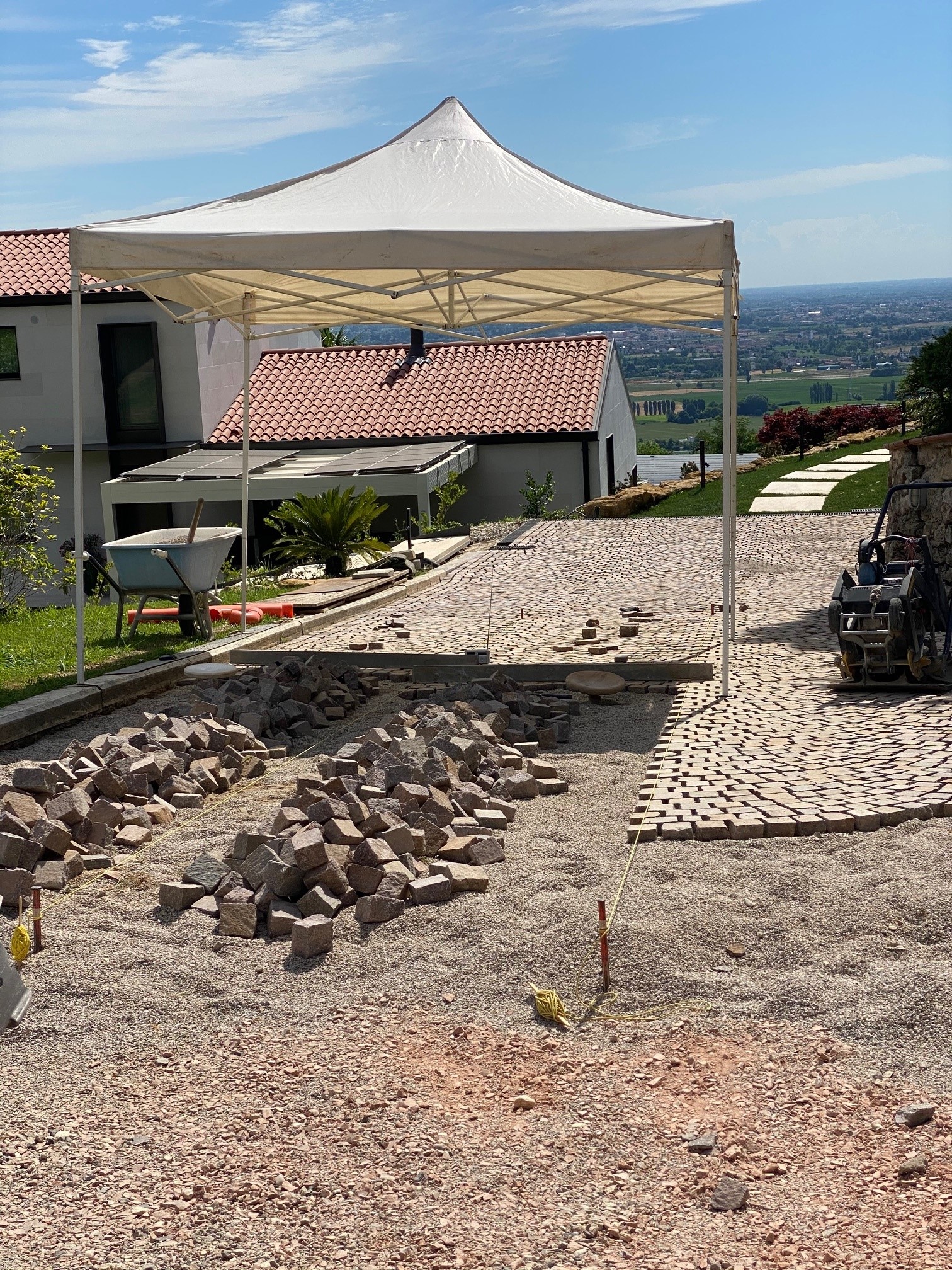

Well, once all this has been done, we begin with the laying, which takes place on a bed of risetta, laid directly on the lean-to, in which we have sunk our cubes with a thickness of about 5/6 cm. Keep in mind that for the laying of an outdoor porphyry floor the dimensions are important, in fact you will have to have 12 cm of thickness available to realize this natural paving that needs more layers.

Laying porphyry for a draining external floor

Draining grout: porphyry grit and resin

Up to this point, it looks like a normal porphyry floor...

This exterior acquires its main characteristic through the joints that have not been made with traditional sand and cement but with the innovative sealing with percolated polyurethane resin.

Whaat?

After laying the porphyry cubes and beating them dry with a special machine, the joints were filled with a small-sized porphyry grit and covered with a casting of polyurethane resin. This casting is done manually: our installers use guns to spray the resin perfectly into the joints, which falls 5-10 cm below the final level, thus making the porphyry floor stable and cohesive.

Here you can see some porphyry projects with sand and cement joints: Porphyry cube flooring

After seeing the realizations in the link above, compare them with the photos of this exterior that I leave you in the gallery below:

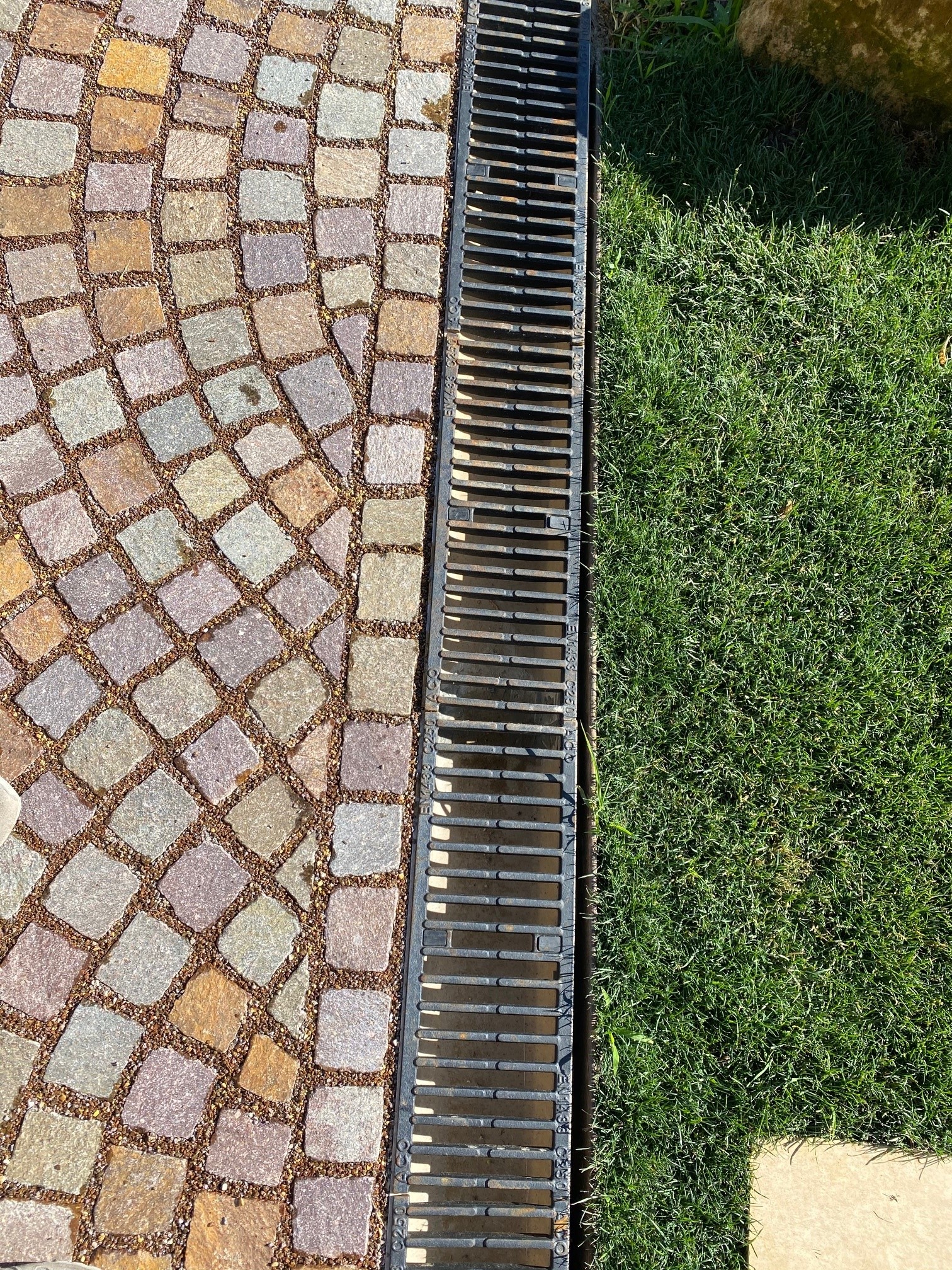

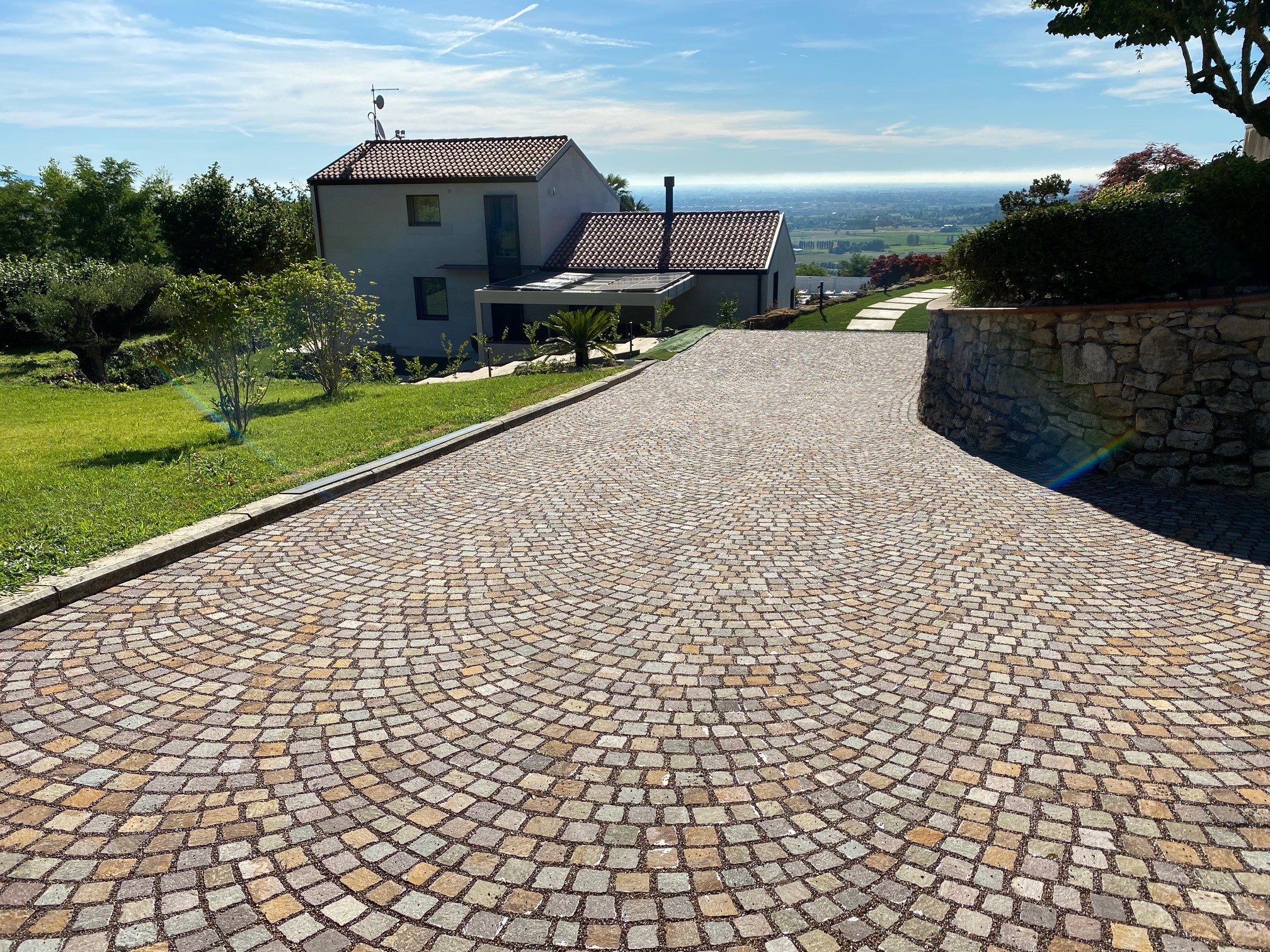

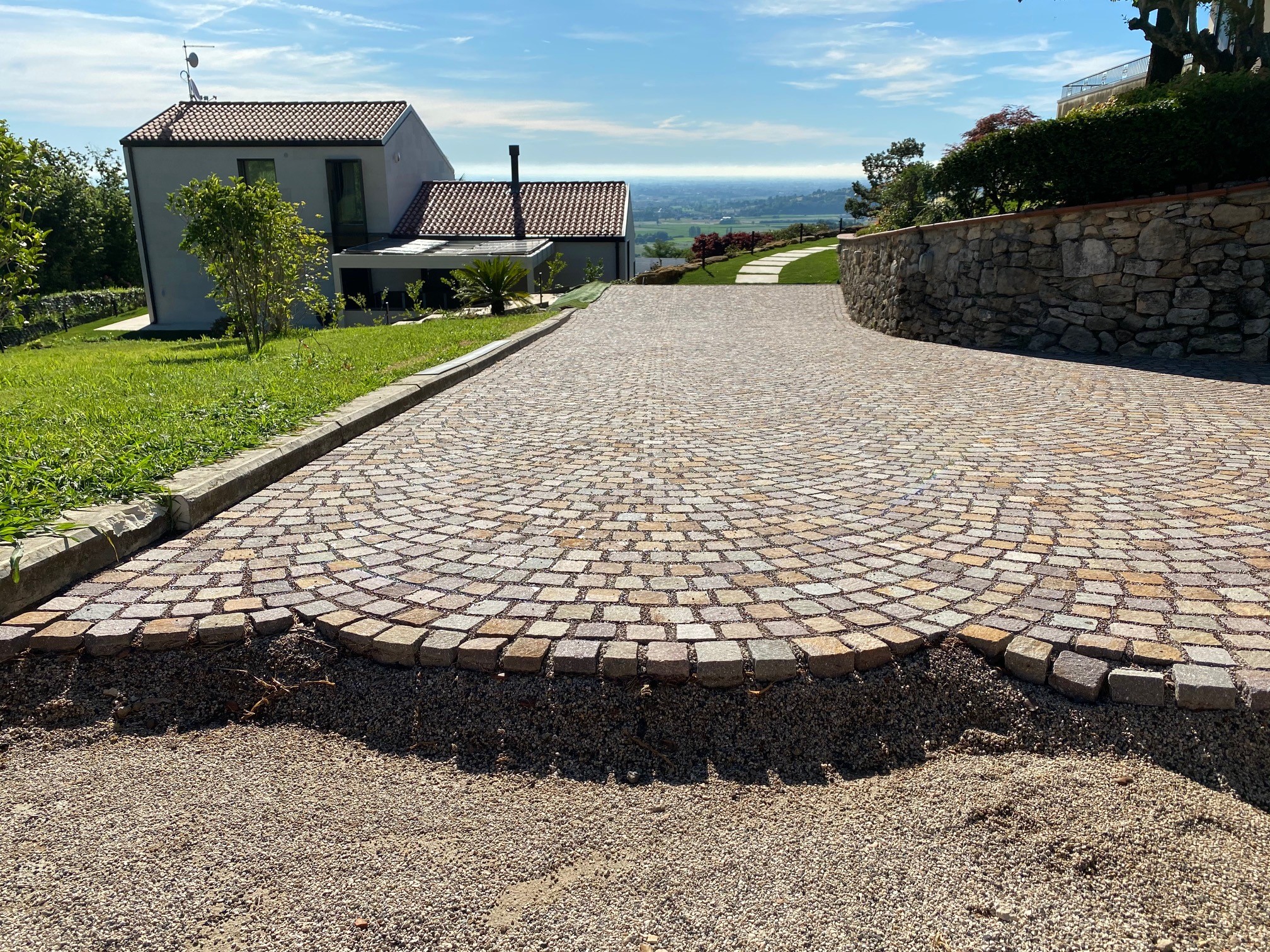

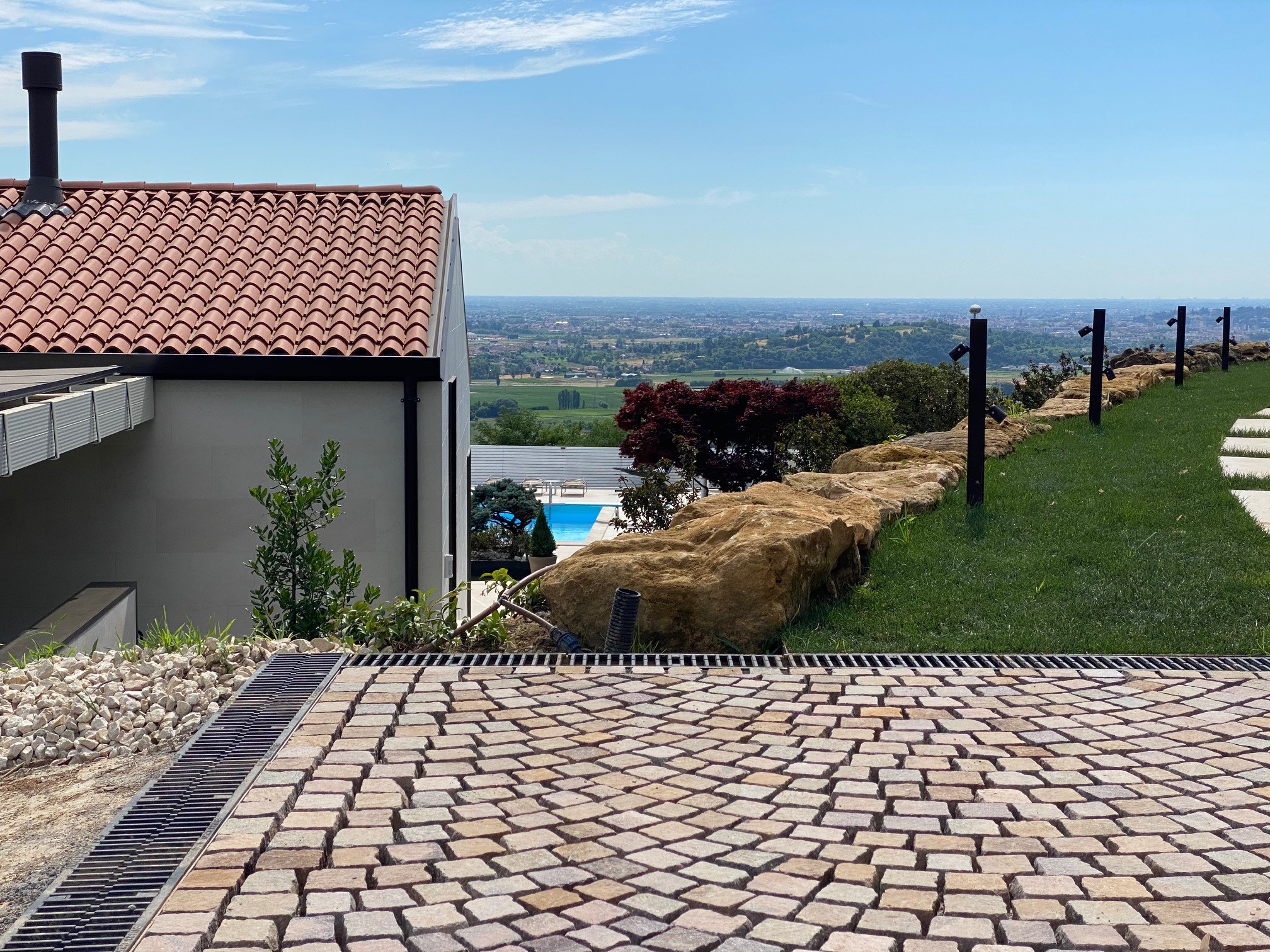

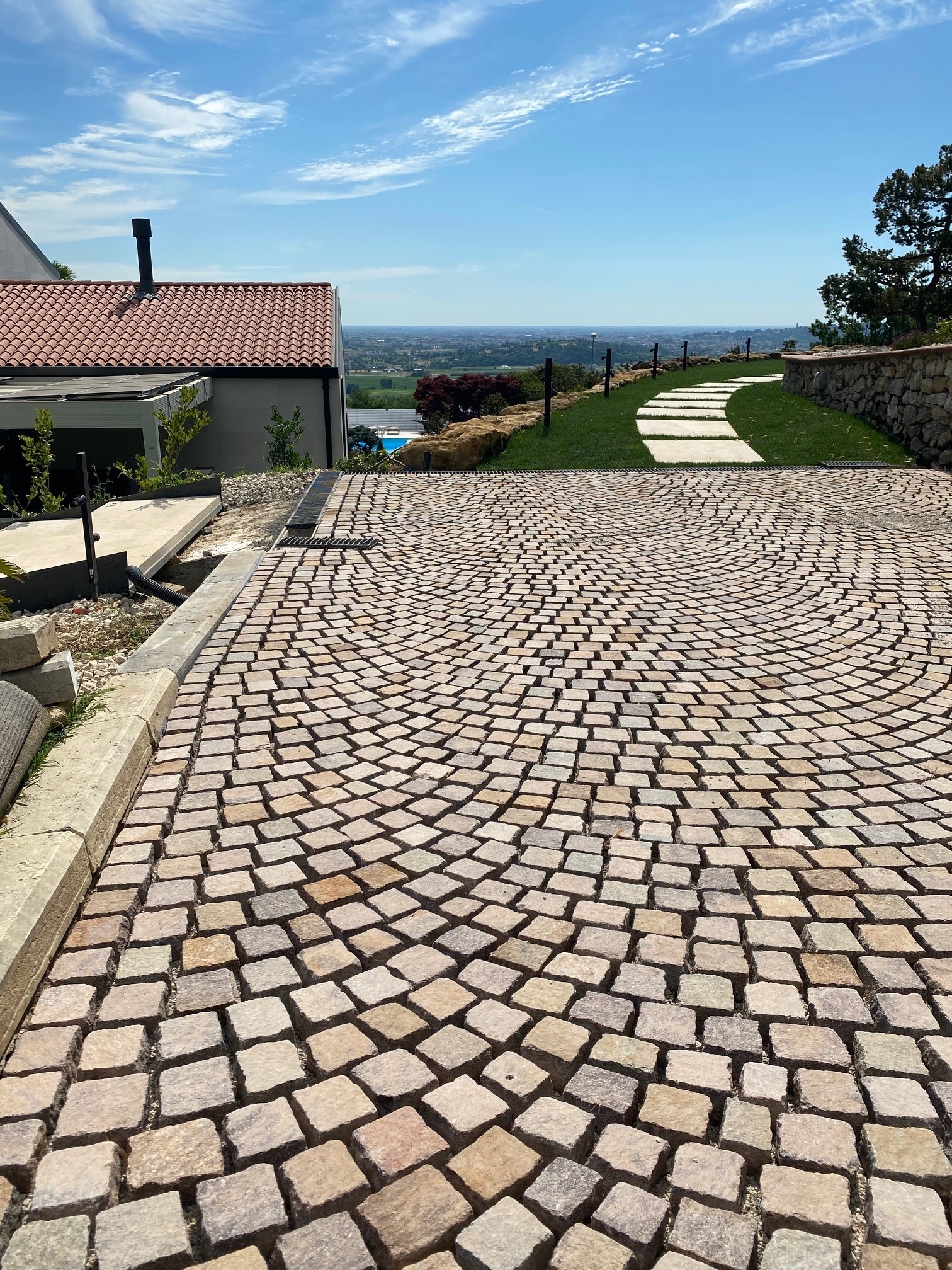

Porphyry paving with resin joints

Why choose porphyry outdoor paving and resin joints?

The choice made by these customers for their outdoor paving definitely improves the aesthetics of their home (remember that the exterior is the calling card you give to your guests) but I would like to point out that their particular need was related to the steep slope of their driveway and only this solution could overcome future problems related to stability and rainwater drainage.

If you are wondering whether oit costs more than a traditional porphyry floor, yes of course it does! The steps are larger and more delicate, so the labour is more expensive and the sand and cement costs much less than porphyry grit and polyurethane resin. So in what cases and why should you opt for this type of flooring?

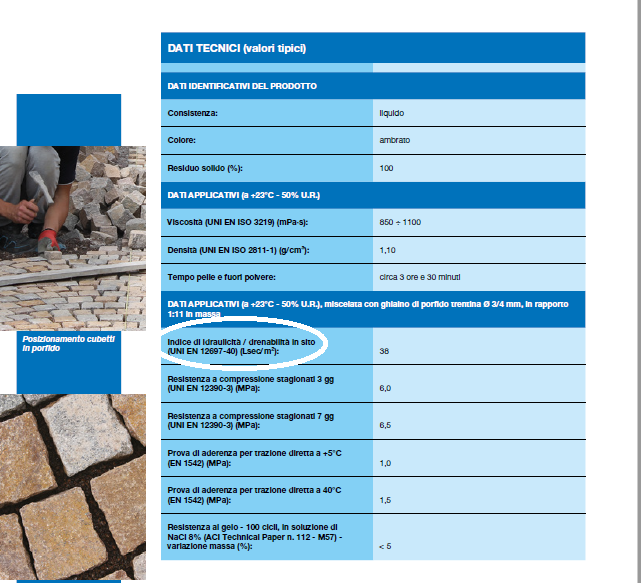

First of all, let the data speak for themselves:

valori drenabilità pavimento esterno



If the slopes are steep, if the area in which you live is subject to frequent rainfall and if it is a driveway area in which heavy vehicles also have to pass, I recommend evaluating this option, which will avoid many problems in the long run.

Keep in mind that the only disadvantage with respect to sand and cement grouts is cleaning, which will certainly be more laborious due to the roughness that makes this type of floor draining and non-slip.


Below is a video that will be very useful for understanding the advantages of choosing this type of flooring for your outdoor area:

One-component polyurethane binder for sealing cube joints

Thank you ?‍♂️

Thank you for reading this article. I hope I have not been too technical and that the photos and videos have helped you to better understand the characteristics and procedure for creating a porphyry floor with resin joints.
